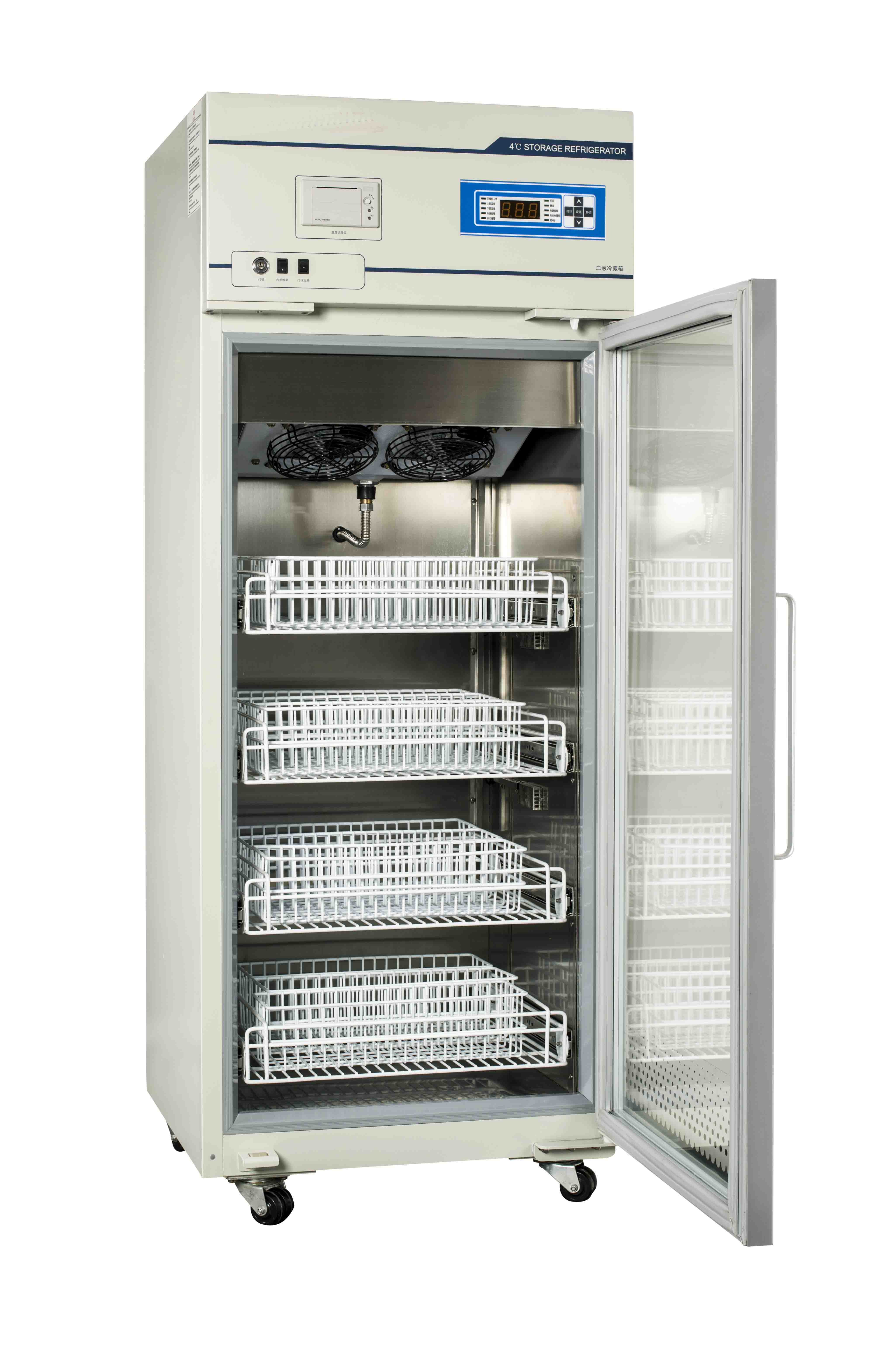

Medical 4 Degree Blood bank Fridge , Blood Bags Refrigerators Microprocessor-based
Model:
MCF-XC-88L(CE) (88L)
MCF-XC-268L(CE) (268L)
MCF-XC-358L(CE) (358L)
MCF-XC-588L(CE) (588L)
Technical parameters
| Model | Capacity (L) | External size (D*W*H) mm | Packing size (mm) | Blood capacity |
| MCF-XC-88L | 88 | 500*450*1515 | 402*343*663 | 450ml/bag*40-60/bags |
| MCF-XC-268L | 268 | 700*628*1662 | 512*518*973 | 450ml/bag*120-150/bags |
| MCF-XC-358L | 358 | 700*628*1962 | 512*515*1270 | 450ml/bag*180-220/bags |
| MCF-XC-588L | 588 | 800*760*1977 | 550*560*1260 | 450ml/bag*250-300/bags |
Control System:
Microprocessor-based temperature control system
Temperature range should have 4±1°C
Large screen LCD display of temperature, display accuracy of 0.1°C
Automatic temperature control, Defrost automatic
Digital display of upper and lower temperature, two sensors
Perfect Audible/visual alarm system: High/low temperature alarm, Door open alarm, system failure alarm,
Power failure alarm, low battery alarm.
Power supply: 220V /50Hz 1 phase, can change as 220V 60HZ or 110V 50HZ or 110V 60HZ
Structure Design:
Upright type, Exterior made from high quality painted steel plate, interior made stainless steel.
4Units Caster are mounted under the bottom
3-layer glass door with heater around to prevent ice link and lockable
Interior fluorescent lighting
Inner is shelves (wire plastics) 3 units for XC-88L, 4 units for XC-268L, 5 units for XC-358L, 6 units for XC-588L
Standard: Temperature printer
Optional: Chart recorder, blood storage basket
Refrigeration System:
International Famous compressor and EBM fan motor
Forced air circulation system
The high-effective air-cooled condenser and the fin-type evaporator
Refrigerant as R134a, CFC free
Certificate:CE, ISO9001, ISO14001,ISO13485
